DirectPatch - Big lengths CAT6A RJ45 patch cords with optical fiber identification

Big lengths PatchSee cables perfect for direct links between servers and commuters

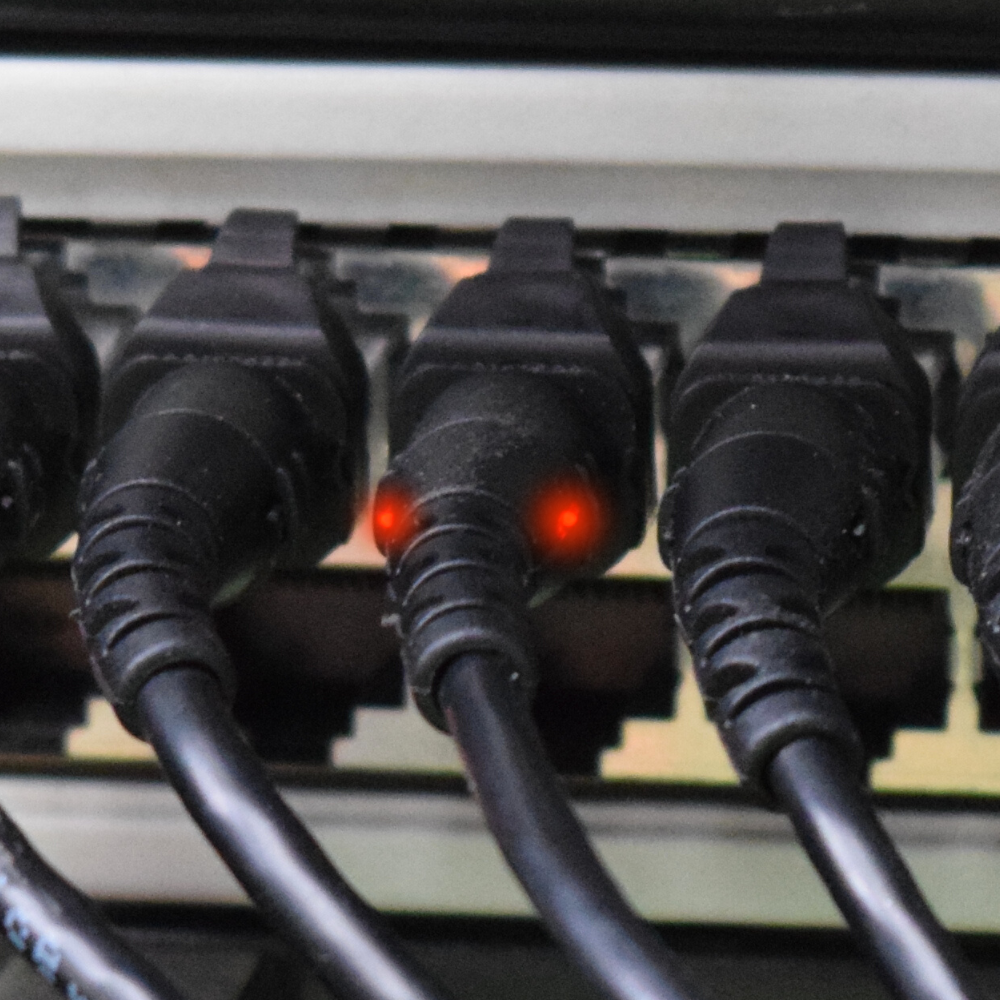

Never disconnect the wrong cable ever again. Using light identification system by 3P Design, instantly spot the connection of your cable at the other end. No mistakes possible.

DirectPatch RJ45 Patch Cords are designed, and individual tested for
connections between the network equipment and patch panels, and for
network user outlet. They are guaranteed for cat 6A, cat 6 and cat 5E
TIA/EIA-568.2-D and ISO/IEC 11801-2 : 2017 component tests, to get a Channel Link certified on a Permanent Link certified for transmission frequencies of up to 500 MHz. Conformed with IEEE 802.3at, POE++/4PPOE and IEEE 802.3bt.

Main characteristics

• Direct links between servers and commuters (flexibility)
• Thanks to our identification solution which combines rapidity and security, you will increase the availability of your equipment and services
• Small profile connector so as to :
  • Adapt to highly congested ports (switches, servers...)
  • Increase the density of ports per rack

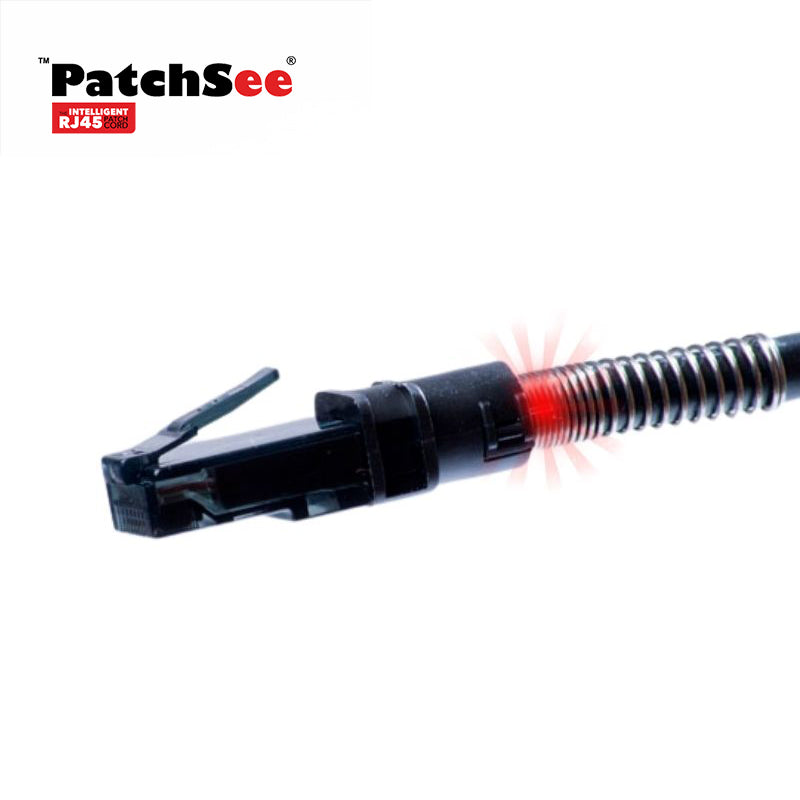

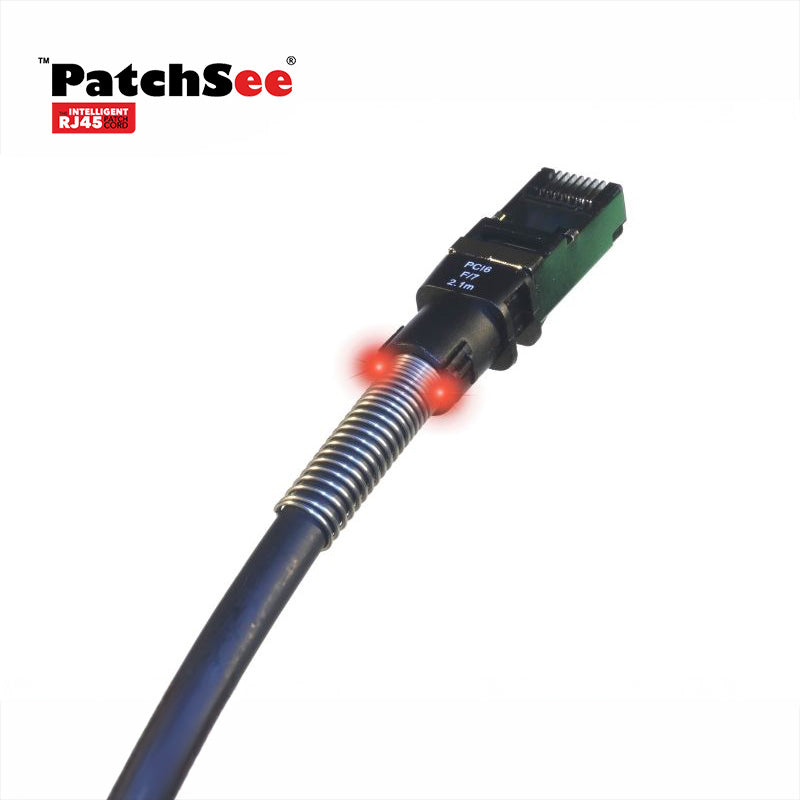

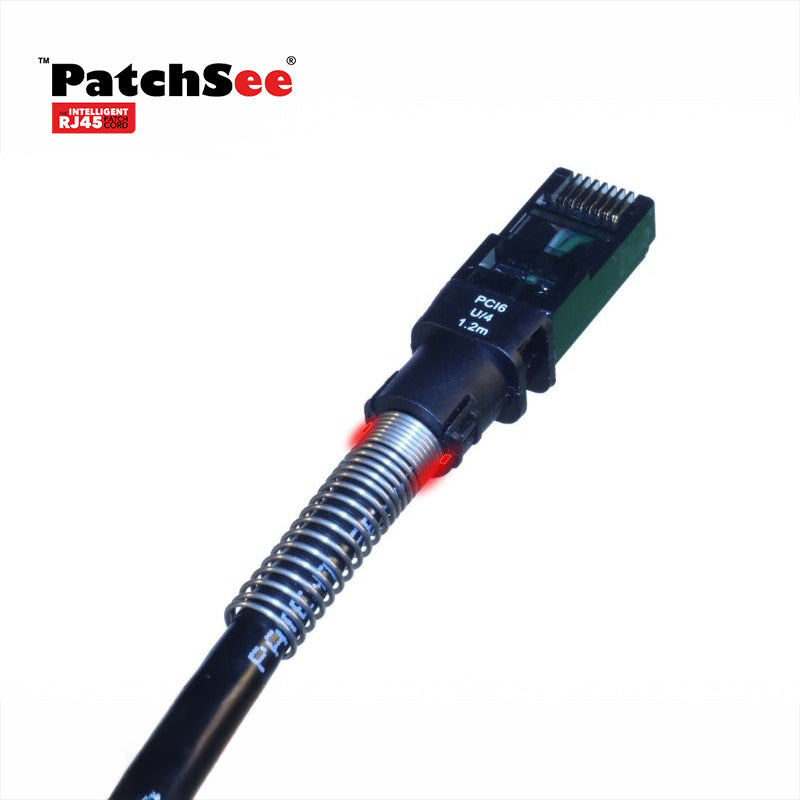

• Light identification by plastic optical fibers (Requires PatchLight)

• Certified for 10 Gb/s applications

• Individually tested: each patch cord is individual tested (Return Loss, Attenuation, NEXT, etc…)

• * 3 lengths from 66 feet (20m) to 100 feet (30m) as standard, up to 50 m on specific request.

• Color of sheath: Black with white marking
• Color of boot: Black with white marking
• Compatible with removable clip PATCHCLIP, 16 colors available
• Marking on the boot: length and P/N
• Unique serial number marking on the cable
• Decrease of the bending radius effect thanks to metal spring
• Equipped with PLUgCAP as standard:
  • Protect the RJ45 connectors during installations
  • Help pulling cables in false ceilings, cable trays, false floors etc... thanks to its ring. PLUgCAP allows you to fix the cables that are on hold in the patch cabinets
• 5 years Guarantee
• Plastic cross web for UTP cable and pair by pair shielding for FTP cable
• PVC sheath for UTP cables and Low Smoke Zero Halogen (LSOH) sheath for FTP cables
• Available in UTP and FTP 100 Ohms
• 5-year warranty on all manufacturer's cabling systems (interoperability)

* Check out the ThinPatch line for shorter cables. Contact us for custom length of up to 165 feet (50m).
