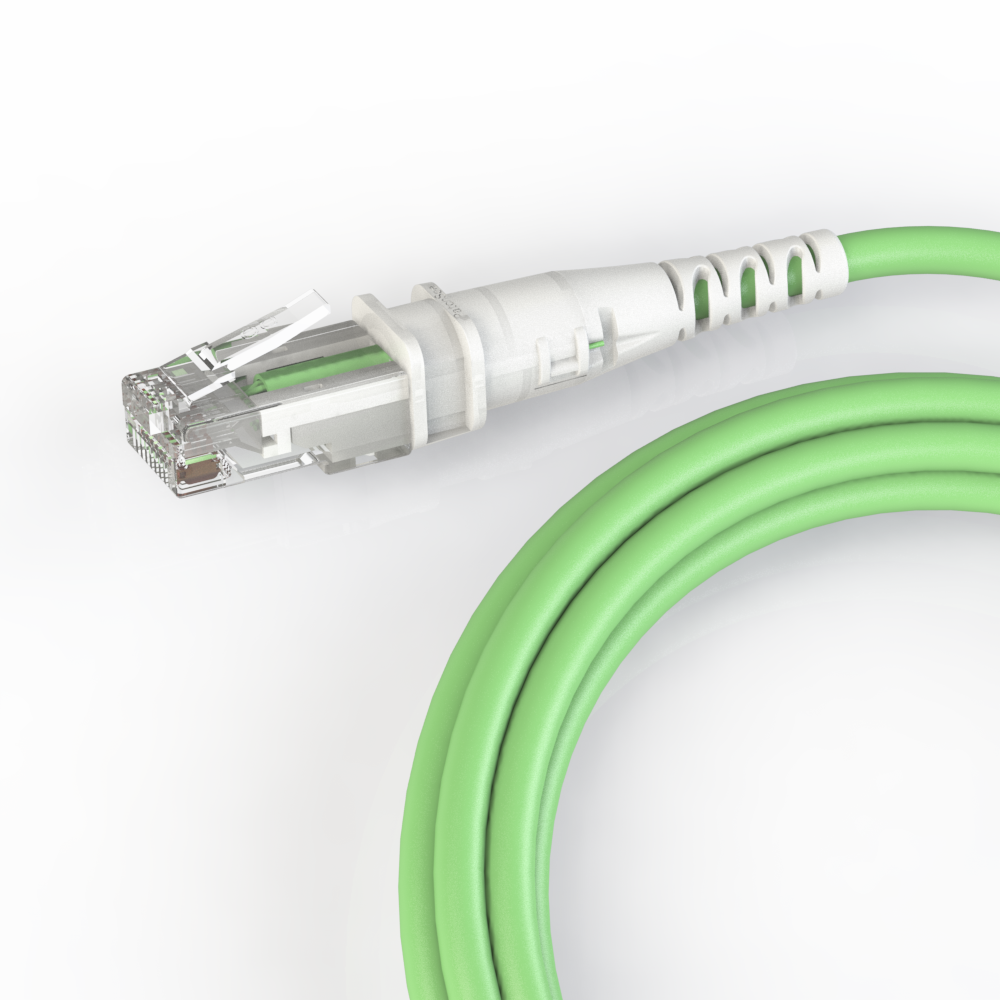

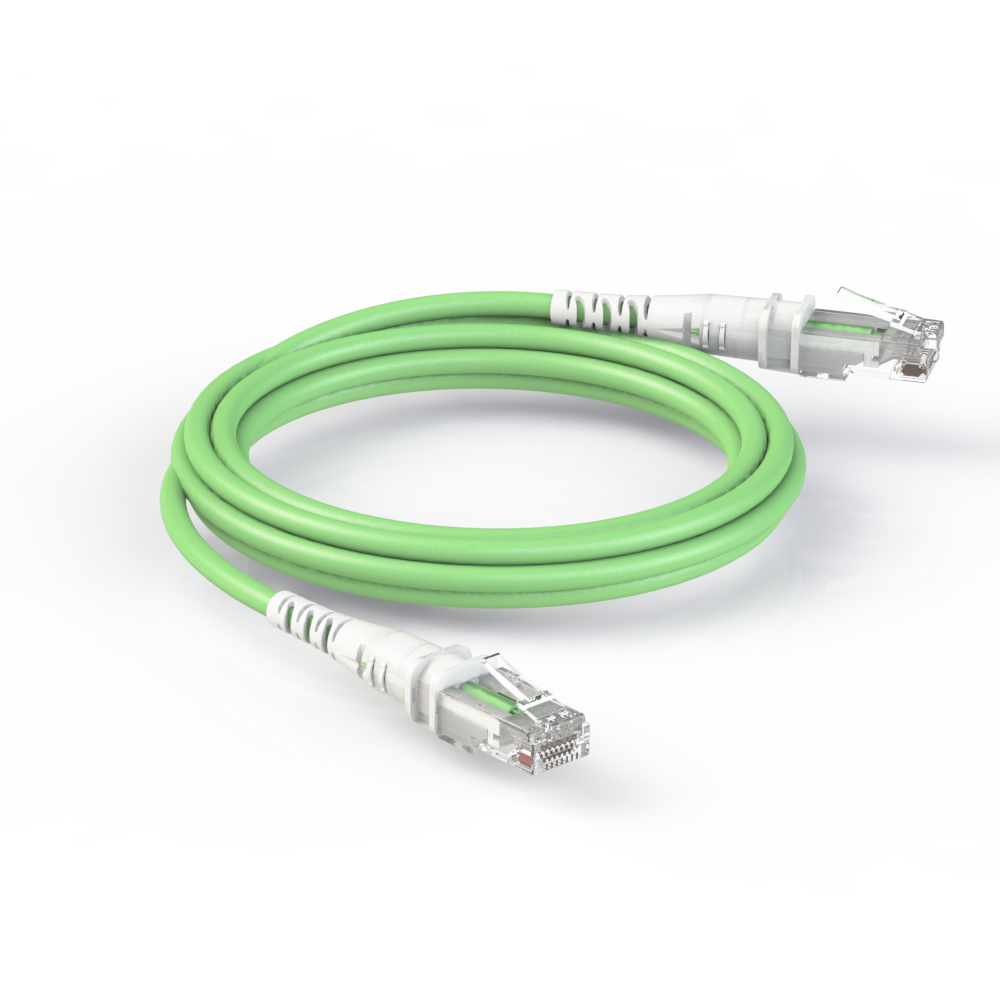

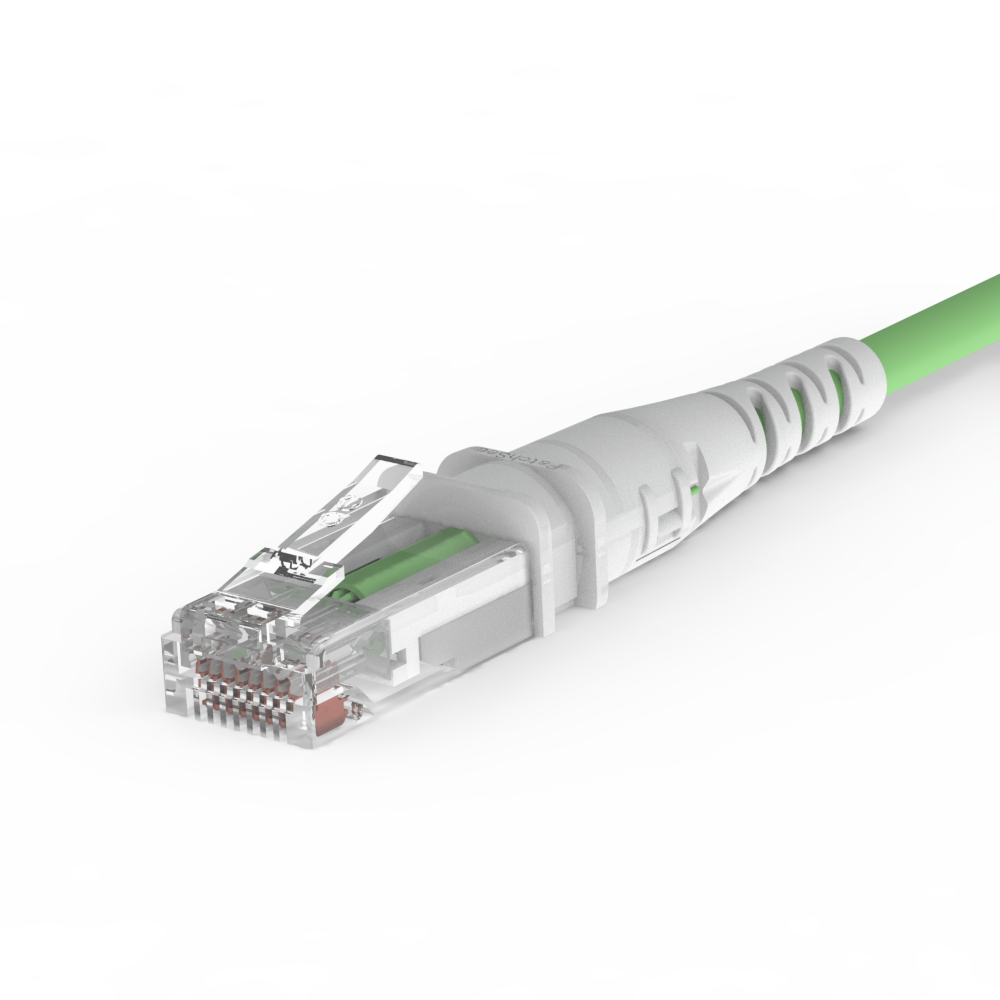

ThinPatch (Apple Green) - Ultra thin CAT6A RJ45 patch cords with optical fiber identification

Thinner and more flexible than traditional PatchSee cables, now with colored sheath

Never disconnect the wrong cable ever again. Using light identification system by 3P Design, instantly spot the connection of your cable at the other end. No mistakes possible.

ThinPATCH CAT6A RJ45 Patch Cords are designed, and individual tested for
connections between the network equipment and patch panels, and for
network user outlet. They are guaranteed for cat 6A, cat 6 and cat 5E
TIA/EIA-568.2-D component tests, to get a Channel Link certified on a
Permanent Link certified for transmission frequencies of up to 500 MHz.
They are compatible with the 10 Gigabits applications, and standard
compliance with ISO/IEC 11801-2: 2017 and Amd 1.

Main characteristics

• Small cable diameter, AWG 28

• Slim PCI (Patchsee Connector Insert: 3P Design property)

  • designed to improve NEXT and RL for 10 Gigabits applications,
  • designed for high density panels and active components (same size as the plug in width and height)

• Light identification by plastic optical fibers (Requires PatchLight)

• Certified for 10 Gb/s applications

• * Available only in UTP (unshielded)
• Individually tested: each patch cord is individual tested (Return Loss, Attenuation, NEXT, etc…)

• * Various lengths from 0.5 feet (0.15m) up to 100 feet (30m)

• Color of sheath: Apple Green
• Color of boot: White
• Compatible POE++/4PPOE up to 100W, IEEE 802.3bt compliant
• Compatible with removable clip PATCHCLIP, 16 colors available
• Marking on the boot: length and P/N
• Unique serial number marking on the cable
• Integrated Bending Radius Protection
• 5-year warranty on all manufacturer's cabling systems (interoperability)

* Check out the ThinPatch line for shielded (foiled) cables.
